イマココ

以前、個人アカウントでvMX Trialのダウンロードができるようになった話 をして、

前回、GNS3でvMX(VCP/VFP)の動作確認が取れた ので、

どの程度の機能が使えるのか把握するべく、今度は logical-system と VPLS を動かしてみることにします。

状況設定

こんな感じのトポロジを作ります。


あー...絵を描こうかと思ったんですが、どうにも綺麗に描けず面倒になったので、言葉で書くので雰囲気で察してください。

  • vMX_VCPとvMX_VFPがセットで1台のMXシリーズ筐体だと思ってください。以降は、それぞれvMX#1~#3と表記します。
  • vMX#1, vMX#2はVPLSのエッジルータです。
  • vMX#3はBGPのルートリフレクターです。
  • IGPにはOSPFを使います。
  • VPLSに必要な各プロセスはlogical-systemによって独立させます。

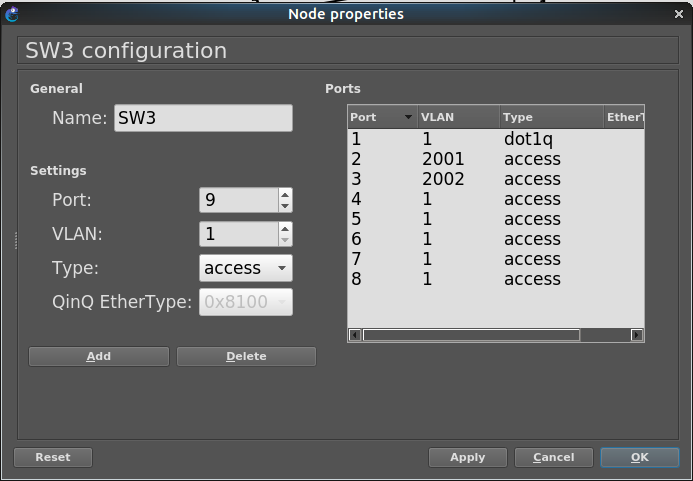

  • SW3,SW4は、ubuntu1604-1,ubuntu1604-2をアクセスポートで収容し、vMX向けにTrunk設定をしています。(下図参照)

SW3,SW4は、VPLSサービスを提供する側の装置なのか、接続してくるユーザー側の装置なのか、はたまた伝送サービスなのか、あんまり考えてないので好きな状況設定でどうぞ。

初期設定

vMXの初期設定をします。

初めてJuniper製品に触る人にも気配りを忘れないボクです。(※初めての人はこんなページ見に来ない)

ログイン後、以下のようなコマンドを叩きます。試行錯誤しやすいようにファイルにも保存しておきます。:

cli
configure
set system root-authentication plain-text-password
set system service ssh
set interfaces fxp0 unit 0 family inet address 172.16.0.1/24
commit
save default.cfg

fxp0のアドレスは、今回特に出番はないです。 172.16.0.1/24 は適当に連番を振ったりすれば良いんじゃないですかね。

打ち込んだらこんな感じ。パスワードは要件を守って自由にどうぞ。:

FreeBSD/amd64 (Amnesiac) (ttyu0)

login: root

--- JUNOS 16.1R1.7 Kernel 64-bit  JNPR-10.1-20160624.329953_builder_stable_10
root@:~ # cli
root> configure
Entering configuration mode

[edit]
root# set system root-authentication plain-text-password
New password:
Retype new password:

[edit]
root# set system services ssh

[edit]
root# set interfaces fxp0 unit 0 family inet address 172.16.0.1/24

[edit]
root# commit
Generating RSA key /etc/ssh/ssh_host_key
Generating DSA key /etc/ssh/ssh_host_dsa_key
Generating RSA2 key /etc/ssh/ssh_host_rsa_key
Generating ECDSA key /etc/ssh/ssh_host_ecdsa_key
Generating ED25519 key /etc/ssh/ssh_host_ed25519_key
commit complete

[edit]
root# save default.cfg
Wrote 31 lines of configuration to 'default.cfg'

コンフィグを元に戻したいときはこんな感じで使います。:

configure
load override default.cfg
commit

これで、この先コンフィグを変えて一から試したいときに便利になりました。

設定垂れ流し

特にコンフィグ解説とかするわけでもないので、こういうの付録にした方が良いんですかねー?

まぁ貼ります。みんな大好きset形式です。

大丈夫!ちゃんとハマりどころもあるから!

vMX#1

set interfaces ge-0/0/0 vlan-tagging
set interfaces ge-0/0/1 vlan-tagging
set interfaces ge-0/0/4 flexible-vlan-tagging
set interfaces ge-0/0/4 encapsulation vlan-vpls

set logical-systems VPLS interfaces lo0 unit 200 family inet address 1.1.1.1/32
set logical-systems VPLS interfaces ge-0/0/0 unit 200 vlan-id 200
set logical-systems VPLS interfaces ge-0/0/0 unit 200 family inet address 10.20.0.1/24
set logical-systems VPLS interfaces ge-0/0/0 unit 200 family mpls
set logical-systems VPLS interfaces ge-0/0/1 unit 200 vlan-id 200
set logical-systems VPLS interfaces ge-0/0/1 unit 200 family inet address 10.20.1.1/24
set logical-systems VPLS interfaces ge-0/0/1 unit 200 family mpls
set logical-systems VPLS routing-options router-id 1.1.1.1
set logical-systems VPLS routing-options autonomous-system 65001
set logical-systems VPLS protocols ospf area 0 interface lo0.200 passive
set logical-systems VPLS protocols ospf area 0 interface ge-0/0/0.200
set logical-systems VPLS protocols ospf area 0 interface ge-0/0/1.200
set logical-systems VPLS protocols bgp group vpls-peering type internal
set logical-systems VPLS protocols bgp group vpls-peering local-address 1.1.1.1
set logical-systems VPLS protocols bgp group vpls-peering type internal family l2vpn signaling
set logical-systems VPLS protocols bgp group vpls-peering neighbor 3.3.3.3

set logical-systems VPLS protocols mpls interface all
set logical-systems VPLS interfaces ge-0/0/4 unit 2001 encapsulation vlan-vpls
set logical-systems VPLS interfaces ge-0/0/4 unit 2001 vlan-id 2001
set logical-systems VPLS interfaces ge-0/0/4 unit 2001 family vpls
set logical-systems VPLS routing-instances vpls2001 instance-type vpls
set logical-systems VPLS routing-instances vpls2001 interface ge-0/0/4.2001
set logical-systems VPLS routing-instances vpls2001 route-distinguisher 65001:202001
set logical-systems VPLS routing-instances vpls2001 vrf-target target:65001:202001
set logical-systems VPLS routing-instances vpls2001 protocols vpls site-range 10
set logical-systems VPLS routing-instances vpls2001 protocols vpls no-tunnel-services
set logical-systems VPLS routing-instances vpls2001 protocols vpls site vpls-site site-identifier 1

set logical-systems VPLS protocols mpls label-switched-path pe1-to-pe2 from 1.1.1.1 to 2.2.2.2
set logical-systems VPLS protocols rsvp interface all
set logical-systems VPLS protocols ospf traffic-engineering

vMX#2

set interfaces ge-0/0/0 vlan-tagging
set interfaces ge-0/0/1 vlan-tagging
set interfaces ge-0/0/4 flexible-vlan-tagging
set interfaces ge-0/0/4 encapsulation vlan-vpls

set logical-systems VPLS interfaces lo0 unit 200 family inet address 2.2.2.2/32
set logical-systems VPLS interfaces ge-0/0/0 unit 200 vlan-id 200
set logical-systems VPLS interfaces ge-0/0/0 unit 200 family inet address 10.20.0.2/24
set logical-systems VPLS interfaces ge-0/0/0 unit 200 family mpls
set logical-systems VPLS interfaces ge-0/0/1 unit 200 vlan-id 200
set logical-systems VPLS interfaces ge-0/0/1 unit 200 family inet address 10.20.2.2/24
set logical-systems VPLS interfaces ge-0/0/1 unit 200 family mpls
set logical-systems VPLS routing-options router-id 2.2.2.2
set logical-systems VPLS routing-options autonomous-system 65001
set logical-systems VPLS protocols ospf area 0 interface lo0.200 passive
set logical-systems VPLS protocols ospf area 0 interface ge-0/0/0.200
set logical-systems VPLS protocols ospf area 0 interface ge-0/0/1.200
set logical-systems VPLS protocols bgp group vpls-peering type internal
set logical-systems VPLS protocols bgp group vpls-peering local-address 2.2.2.2
set logical-systems VPLS protocols bgp group vpls-peering type internal family l2vpn signaling
set logical-systems VPLS protocols bgp group vpls-peering neighbor 3.3.3.3

set logical-systems VPLS protocols mpls interface all
set logical-systems VPLS interfaces ge-0/0/4 unit 2001 encapsulation vlan-vpls
set logical-systems VPLS interfaces ge-0/0/4 unit 2001 vlan-id 2001
set logical-systems VPLS interfaces ge-0/0/4 unit 2001 family vpls
set logical-systems VPLS routing-instances vpls2001 instance-type vpls
set logical-systems VPLS routing-instances vpls2001 interface ge-0/0/4.2001
set logical-systems VPLS routing-instances vpls2001 route-distinguisher 65001:202001
set logical-systems VPLS routing-instances vpls2001 vrf-target target:65001:202001
set logical-systems VPLS routing-instances vpls2001 protocols vpls site-range 10
set logical-systems VPLS routing-instances vpls2001 protocols vpls no-tunnel-services
set logical-systems VPLS routing-instances vpls2001 protocols vpls site vpls-site site-identifier 2

set logical-systems VPLS protocols mpls label-switched-path pe1-to-pe2 from 2.2.2.2 to 1.1.1.1
set logical-systems VPLS protocols rsvp interface all
set logical-systems VPLS protocols ospf traffic-engineering

vMX#3

set interfaces ge-0/0/0 vlan-tagging
set interfaces ge-0/0/1 vlan-tagging

set logical-systems VPLS interfaces lo0 unit 200 family inet address 3.3.3.3/32
set logical-systems VPLS interfaces ge-0/0/0 unit 200 vlan-id 200
set logical-systems VPLS interfaces ge-0/0/0 unit 200 family inet address 10.20.1.3/24
set logical-systems VPLS interfaces ge-0/0/1 unit 200 vlan-id 200
set logical-systems VPLS interfaces ge-0/0/1 unit 200 family inet address 10.20.2.3/24
set logical-systems VPLS routing-options router-id 3.3.3.3
set logical-systems VPLS routing-options autonomous-system 65001
set logical-systems VPLS protocols ospf area 0 interface lo0.200 passive
set logical-systems VPLS protocols ospf area 0 interface ge-0/0/0.200
set logical-systems VPLS protocols ospf area 0 interface ge-0/0/1.200
set logical-systems VPLS protocols bgp group rr type internal
set logical-systems VPLS protocols bgp group rr local-address 3.3.3.3
set logical-systems VPLS protocols bgp group rr type internal family l2vpn signaling
set logical-systems VPLS protocols bgp group rr cluster 3.3.3.3
set logical-systems VPLS protocols bgp group rr neighbor 1.1.1.1
set logical-systems VPLS protocols bgp group rr neighbor 2.2.2.2

ubuntu1604-1

sudo ip link set up ens4
sudo ip addr add 192.168.10.5/24 dev ens4

ubuntu1604-2

sudo ip link set up ens4
sudo ip addr add 192.168.10.6/24 dev ens4

動作確認(初回)

よーし、設定が終わったので、確認サボってpingを打つぞい。

ubuntu1604-1

$ ping 192.168.10.6
PING 192.168.10.6 (192.168.10.6) 56(84) bytes of data.
From 192.168.10.6 icmp_seq=1 Destination Host Unreachable
From 192.168.10.6 icmp_seq=2 Destination Host Unreachable
From 192.168.10.6 icmp_seq=3 Destination Host Unreachable
^C
--- 192.168.10.6 ping statistics ---
6 packets transmitted, 0 received, +3 errors, 100% packet loss, time 5017ms
pipe 3

(´・ω・`)

状況確認

なんでかなー、ってことで装置の状態を見ていく。

vMX#3

まずルーティングテーブルを見る。(JuniperはルーティングテーブルにVPLSのBGPテーブルも乗るのだ):

root> show route logical-system VPLS hidden

inet.0: 9 destinations, 9 routes (9 active, 0 holddown, 0 hidden)

bgp.l2vpn.0: 2 destinations, 2 routes (0 active, 0 holddown, 2 hidden)
+ = Active Route, - = Last Active, * = Both

65001:202001:1:1/96
                    [BGP/170] 00:02:04, localpref 100, from 1.1.1.1
                    AS path: I, validation-state: unverified
                    Unusable
65001:202001:2:1/96
                    [BGP/170] 00:02:13, localpref 100, from 2.2.2.2
                    AS path: I, validation-state: unverified
                    Unusable

ふむ。経路が2個無効になっているね。

より詳細に見てみよう。:

root> show route logical-system VPLS hidden extensive | no-more

inet.0: 9 destinations, 9 routes (9 active, 0 holddown, 0 hidden)

bgp.l2vpn.0: 2 destinations, 2 routes (0 active, 0 holddown, 2 hidden)
65001:202001:1:1/96 (1 entry, 0 announced)
        BGP    Preference: 170/-101
                Route Distinguisher: 65001:202001
                Next hop type: Unusable, Next hop index: 0
                Address: 0x9d663a4
                Next-hop reference count: 2
                State: <Hidden Int Ext>
                Local AS: 65001 Peer AS: 65001
                Age: 2:52
                Validation State: unverified
                Task: BGP_65001.1.1.1.1
                AS path: I
                Communities: target:65001:202001 Layer2-info: encaps: VPLS, control flags:[0x0] , mtu: 0, site preference: 100
                Accepted
                Label-base: 262145, range: 8, offset: 1
                Localpref: 100
                Router ID: 1.1.1.1
                Indirect next hops: 1
                        Protocol next hop: 1.1.1.1
                        Indirect next hop: 0x0 - INH Session ID: 0x0

65001:202001:2:1/96 (1 entry, 0 announced)
        BGP    Preference: 170/-101
                Route Distinguisher: 65001:202001
                Next hop type: Unusable, Next hop index: 0
                Address: 0x9d663a4
                Next-hop reference count: 2
                State: <Hidden Int Ext>
                Local AS: 65001 Peer AS: 65001
                Age: 3:01
                Validation State: unverified
                Task: BGP_65001.2.2.2.2
                AS path: I
                Communities: target:65001:202001 Layer2-info: encaps: VPLS, control flags:[0x0] , mtu: 0, site preference: 100
                Accepted
                Label-base: 262145, range: 8, offset: 1
                Localpref: 100
                Router ID: 2.2.2.2
                Indirect next hops: 1
                        Protocol next hop: 2.2.2.2
                        Indirect next hop: 0x0 - INH Session ID: 0x0

見えている経路は想定したものだけど、Next-hopが有効になっていないようだ。

つまり解決に失敗しているということだね?:

root> show route resolution unresolved logical-system VPLS
Tree Index 1
65001:202001:1:1/320
        Protocol Nexthop: 1.1.1.1
        Indirect nexthop: 0x0 - INH Session ID: 0x0      Path forwarding nexthops link: 0x0
        Path inh link: 0x0

65001:202001:2:1/320
        Protocol Nexthop: 2.2.2.2
        Indirect nexthop: 0x0 - INH Session ID: 0x0      Path forwarding nexthops link: 0x0
        Path inh link: 0x0

ふーむ、ふむふむ。

これはVPLSインスタンスを持たないBGPルートリフレクターが、自身の経路ルックアップ対象テーブルが見つけられない経路を無効にしてしまっているからだね。(説明放棄)

対応

vMX#3に設定を追加するよ。:

configure
set logical-systems VPLS routing-options resolution rib bgp.l2vpn.0 resolution-ribs inet.0
commit

ふぅ、やれやれ。

動作確認(2回目)

ubuntu1604-1

よーし、設定が終わったので、確認サボってpingを打つぞい。(こりない):

$ ping -c 5 192.168.10.6
PING 192.168.10.6 (192.168.10.6) 56(84) bytes of data.
64 bytes from 192.168.10.6: icmp_seq=1 ttl=64 time=3.24 ms
64 bytes from 192.168.10.6: icmp_seq=2 ttl=64 time=1.64 ms
64 bytes from 192.168.10.6: icmp_seq=3 ttl=64 time=1.54 ms
64 bytes from 192.168.10.6: icmp_seq=4 ttl=64 time=1.77 ms
64 bytes from 192.168.10.6: icmp_seq=5 ttl=64 time=1.46 ms

--- 192.168.10.6 ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 4006ms
rtt min/avg/max/mdev = 1.467/1.935/3.244/0.662 ms
$ arp -n -i ens4
Address                  HWtype  HWaddress           Flags Mask            Iface
192.168.10.6             ether   00:65:58:7f:16:01   C                     ens4

やったー、pingが通ったよー。

ここで学習したMACアドレスは、VPLS側にも当然あるはず。

vMX#1

ありました。:

root> show vpls mac-table logical-system VPLS | no-more

MAC flags       (S -static MAC, D -dynamic MAC, L -locally learned, C -Control MAC
    O -OVSDB MAC, SE -Statistics enabled, NM -Non configured MAC, R -Remote PE MAC)

Logical system   : VPLS
Routing instance : vpls2001
Bridging domain : __vpls2001__, VLAN : NA
MAC                 MAC      Logical          NH     RTR
addresssss          flags    interface        Index  ID
00:65:58:45:7a:01   D        ge-0/0/4.2001
00:65:58:7f:16:01   D        lsi.17826048

おしまい

というわけで、vMX(VCP/VFP)でVPLSを動かしてみるサンプルでした。

ちゃんとlogical-systemも動いて、十分に機能することが確認できました。

折角ダウンロード権限をもらったので、この程度は公開しておこうかなと思いまして。

それにしても、この構成が組めるということは、もしかしてアレも...と思った皆様、どうぞお試しください。

それではお疲れ様でした。

参考出力

以下参考出力です。

vMX#1

root> show interfaces terse | no-more
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
ge-0/0/0.200            up    up   inet     10.20.0.1/24
                                mpls
                                multiservice
ge-0/0/0.32767          up    up   multiservice
lc-0/0/0                up    up
lc-0/0/0.32769          up    up   vpls
pfe-0/0/0               up    up
pfe-0/0/0.16383         up    up   inet
                                inet6
pfh-0/0/0               up    up
pfh-0/0/0.16383         up    up   inet
pfh-0/0/0.16384         up    up   inet
ge-0/0/1                up    up
ge-0/0/1.200            up    up   inet     10.20.1.1/24
                                mpls
                                multiservice
ge-0/0/1.32767          up    up   multiservice
ge-0/0/2                up    up
ge-0/0/3                up    up
ge-0/0/4                up    up
ge-0/0/4.2001           up    up   vpls
ge-0/0/4.32767          up    up   multiservice
ge-0/0/5                up    up
ge-0/0/6                up    down
ge-0/0/7                up    down
ge-0/0/8                up    down
ge-0/0/9                up    down
cbp0                    up    up
demux0                  up    up
dsc                     up    up
em1                     up    up
em1.0                   up    up   inet     10.0.0.4/8
                                            128.0.0.1/2
                                            128.0.0.4/2
                                inet6    fe80::265:58ff:fe42:8801/64
                                            fec0::a:0:0:4/64
                                tnp      0x4
esi                     up    up
fxp0                    up    up
fxp0.0                  up    up   inet     172.16.0.1/24
gre                     up    up
ipip                    up    up
irb                     up    up
jsrv                    up    up
jsrv.1                  up    up   inet     128.0.0.127/2
lo0                     up    up
lo0.200                 up    up   inet     1.1.1.1             --> 0/0
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet
lsi                     up    up
lsi.17826048            up    up   vpls
mtun                    up    up
pimd                    up    up
pime                    up    up
pip0                    up    up
pp0                     up    up
rbeb                    up    up
tap                     up    up
vtep                    up    up
vtnet2                  up    up
vtnet3                  up    up

root> show ospf neighbor logical-system VPLS | no-more
Address          Interface              State     ID               Pri  Dead
10.20.0.2        ge-0/0/0.200           Full      2.2.2.2          128    38
10.20.1.3        ge-0/0/1.200           Full      3.3.3.3          128    32

root> show bgp summary logical-system VPLS | no-more
Groups: 1 Peers: 1 Down peers: 0
Table          Tot Paths  Act Paths Suppressed    History Damp State    Pending
bgp.l2vpn.0
                    1          1          0          0          0          0
Peer                     AS      InPkt     OutPkt    OutQ   Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
3.3.3.3               65001        184        181       0       0     1:20:40 Establ
bgp.l2vpn.0: 1/1/1/0
vpls2001.l2vpn.0: 1/1/1/0

root> show route logical-system VPLS | no-more

inet.0: 9 destinations, 9 routes (9 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

1.1.1.1/32         *[Direct/0] 01:22:54
                    > via lo0.200
2.2.2.2/32         *[OSPF/10] 01:21:43, metric 1
                    > to 10.20.0.2 via ge-0/0/0.200
3.3.3.3/32         *[OSPF/10] 01:21:03, metric 1
                    > to 10.20.1.3 via ge-0/0/1.200
10.20.0.0/24       *[Direct/0] 01:22:54
                    > via ge-0/0/0.200
10.20.0.1/32       *[Local/0] 01:22:54
                    Local via ge-0/0/0.200
10.20.1.0/24       *[Direct/0] 01:22:54
                    > via ge-0/0/1.200
10.20.1.1/32       *[Local/0] 01:22:54
                    Local via ge-0/0/1.200
10.20.2.0/24       *[OSPF/10] 01:21:03, metric 2
                    to 10.20.0.2 via ge-0/0/0.200
                    > to 10.20.1.3 via ge-0/0/1.200
224.0.0.5/32       *[OSPF/10] 01:22:55, metric 1
                    MultiRecv

inet.3: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

2.2.2.2/32         *[RSVP/7/1] 01:21:26, metric 1
                    > to 10.20.0.2 via ge-0/0/0.200, label-switched-path pe1-to-pe2

mpls.0: 6 destinations, 6 routes (6 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0                  *[MPLS/0] 01:22:54, metric 1
                    Receive
1                  *[MPLS/0] 01:22:54, metric 1
                    Receive
2                  *[MPLS/0] 01:22:54, metric 1
                    Receive
13                 *[MPLS/0] 01:22:54, metric 1
                    Receive
262146             *[VPLS/7] 00:06:54
                    > via lsi.17826048 (master), Pop
lsi.17826048       *[VPLS/7] 00:06:54, metric2 1
                    > to 10.20.0.2 via ge-0/0/0.200, label-switched-path pe1-to-pe2

bgp.l2vpn.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

65001:202001:2:1/96
                *[BGP/170] 00:06:54, localpref 100, from 3.3.3.3
                    AS path: I, validation-state: unverified
                    > to 10.20.0.2 via ge-0/0/0.200, label-switched-path pe1-to-pe2

vpls2001.l2vpn.0: 2 destinations, 2 routes (2 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

65001:202001:1:1/96
                *[L2VPN/170/-101] 01:22:54, metric2 1
                    Indirect
65001:202001:2:1/96
                *[BGP/170] 00:06:54, localpref 100, from 3.3.3.3
                    AS path: I, validation-state: unverified
                    > to 10.20.0.2 via ge-0/0/0.200, label-switched-path pe1-to-pe2

root> show vpls connections logical-system VPLS | no-more
Layer-2 VPN connections:

Legend for connection status (St)
EI -- encapsulation invalid      NC -- interface encapsulation not CCC/TCC/VPLS
EM -- encapsulation mismatch     WE -- interface and instance encaps not same
VC-Dn -- Virtual circuit down    NP -- interface hardware not present
CM -- control-word mismatch      -> -- only outbound connection is up
CN -- circuit not provisioned    <- -- only inbound connection is up
OR -- out of range               Up -- operational
OL -- no outgoing label          Dn -- down
LD -- local site signaled down   CF -- call admission control failure
RD -- remote site signaled down  SC -- local and remote site ID collision
LN -- local site not designated  LM -- local site ID not minimum designated
RN -- remote site not designated RM -- remote site ID not minimum designated
XX -- unknown connection status  IL -- no incoming label
MM -- MTU mismatch               MI -- Mesh-Group ID not available
BK -- Backup connection          ST -- Standby connection
PF -- Profile parse failure      PB -- Profile busy
RS -- remote site standby        SN -- Static Neighbor
LB -- Local site not best-site   RB -- Remote site not best-site
VM -- VLAN ID mismatch           HS -- Hot-standby Connection

Legend for interface status
Up -- operational
Dn -- down

Instance: vpls2001
Edge protection: Not-Primary
Local site: vpls-site (1)
    connection-site           Type  St     Time last up          # Up trans
    2                         rmt   Up     Sep 18 22:25:43 2016           1
    Remote PE: 2.2.2.2, Negotiated control-word: No
    Incoming label: 262146, Outgoing label: 262145
    Local interface: lsi.17826048, Status: Up, Encapsulation: VPLS
        Description: Intf - vpls vpls2001 local site 1 remote site 2
    Flow Label Transmit: No, Flow Label Receive: No

root> show vpls mac-table logical-system VPLS | no-more

MAC flags       (S -static MAC, D -dynamic MAC, L -locally learned, C -Control MAC
    O -OVSDB MAC, SE -Statistics enabled, NM -Non configured MAC, R -Remote PE MAC)

Logical system   : VPLS
Routing instance : vpls2001
Bridging domain : __vpls2001__, VLAN : NA
MAC                 MAC      Logical          NH     RTR
addresssss          flags    interface        Index  ID
00:65:58:45:7a:01   D        ge-0/0/4.2001
00:65:58:7f:16:01   D        lsi.17826048

root> show mpls lsp logical-system VPLS | no-more
Ingress LSP: 1 sessions
To              From            State Rt P     ActivePath       LSPname
2.2.2.2         1.1.1.1         Up     0 *                      pe1-to-pe2
Total 1 displayed, Up 1, Down 0

Egress LSP: 1 sessions
To              From            State   Rt Style Labelin Labelout LSPname
1.1.1.1         2.2.2.2         Up       0  1 FF       3        - pe1-to-pe2
Total 1 displayed, Up 1, Down 0

Transit LSP: 0 sessions
Total 0 displayed, Up 0, Down 0

root> show rsvp session logical-system VPLS
Ingress RSVP: 1 sessions
To              From            State   Rt Style Labelin Labelout LSPname
2.2.2.2         1.1.1.1         Up       0  1 FF       -        3 pe1-to-pe2
Total 1 displayed, Up 1, Down 0

Egress RSVP: 1 sessions
To              From            State   Rt Style Labelin Labelout LSPname
1.1.1.1         2.2.2.2         Up       0  1 FF       3        - pe1-to-pe2
Total 1 displayed, Up 1, Down 0

Transit RSVP: 0 sessions
Total 0 displayed, Up 0, Down 0

vMX#2

root> show interfaces terse | no-more
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
ge-0/0/0.200            up    up   inet     10.20.0.2/24
                                mpls
                                multiservice
ge-0/0/0.32767          up    up   multiservice
lc-0/0/0                up    up
lc-0/0/0.32769          up    up   vpls
pfe-0/0/0               up    up
pfe-0/0/0.16383         up    up   inet
                                inet6
pfh-0/0/0               up    up
pfh-0/0/0.16383         up    up   inet
pfh-0/0/0.16384         up    up   inet
ge-0/0/1                up    up
ge-0/0/1.200            up    up   inet     10.20.2.2/24
                                mpls
                                multiservice
ge-0/0/1.32767          up    up   multiservice
ge-0/0/2                up    up
ge-0/0/3                up    up
ge-0/0/4                up    up
ge-0/0/4.2001           up    up   vpls
ge-0/0/4.32767          up    up   multiservice
ge-0/0/5                up    up
ge-0/0/6                up    down
ge-0/0/7                up    down
ge-0/0/8                up    down
ge-0/0/9                up    down
cbp0                    up    up
demux0                  up    up
dsc                     up    up
em1                     up    up
em1.0                   up    up   inet     10.0.0.4/8
                                            128.0.0.1/2
                                            128.0.0.4/2
                                inet6    fe80::265:58ff:fe60:6f01/64
                                            fec0::a:0:0:4/64
                                tnp      0x4
esi                     up    up
fxp0                    up    up
fxp0.0                  up    up   inet     172.16.0.2/24
gre                     up    up
ipip                    up    up
irb                     up    up
jsrv                    up    up
jsrv.1                  up    up   inet     128.0.0.127/2
lo0                     up    up
lo0.200                 up    up   inet     2.2.2.2             --> 0/0
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet
lsi                     up    up
lsi.17826048            up    up   vpls
mtun                    up    up
pimd                    up    up
pime                    up    up
pip0                    up    up
pp0                     up    up
rbeb                    up    up
tap                     up    up
vtep                    up    up
vtnet2                  up    up
vtnet3                  up    up

root> show ospf neighbor logical-system VPLS | no-more
Address          Interface              State     ID               Pri  Dead
10.20.0.1        ge-0/0/0.200           Full      1.1.1.1          128    38
10.20.2.3        ge-0/0/1.200           Full      3.3.3.3          128    38

root> show bgp summary logical-system VPLS | no-more
Groups: 1 Peers: 1 Down peers: 0
Table          Tot Paths  Act Paths Suppressed    History Damp State    Pending
bgp.l2vpn.0
                    1          1          0          0          0          0
Peer                     AS      InPkt     OutPkt    OutQ   Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
3.3.3.3               65001        200        197       0       0     1:27:46 Establ
bgp.l2vpn.0: 1/1/1/0
vpls2001.l2vpn.0: 1/1/1/0

root> show route logical-system VPLS | no-more

inet.0: 9 destinations, 9 routes (9 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

1.1.1.1/32         *[OSPF/10] 01:28:41, metric 1
                    > to 10.20.0.1 via ge-0/0/0.200
2.2.2.2/32         *[Direct/0] 01:29:01
                    > via lo0.200
3.3.3.3/32         *[OSPF/10] 01:28:05, metric 1
                    > to 10.20.2.3 via ge-0/0/1.200
10.20.0.0/24       *[Direct/0] 01:29:01
                    > via ge-0/0/0.200
10.20.0.2/32       *[Local/0] 01:29:01
                    Local via ge-0/0/0.200
10.20.1.0/24       *[OSPF/10] 01:28:05, metric 2
                    to 10.20.0.1 via ge-0/0/0.200
                    > to 10.20.2.3 via ge-0/0/1.200
10.20.2.0/24       *[Direct/0] 01:29:01
                    > via ge-0/0/1.200
10.20.2.2/32       *[Local/0] 01:29:01
                    Local via ge-0/0/1.200
224.0.0.5/32       *[OSPF/10] 01:29:01, metric 1
                    MultiRecv

inet.3: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

1.1.1.1/32         *[RSVP/7/1] 01:28:32, metric 1
                    > to 10.20.0.1 via ge-0/0/0.200, label-switched-path pe1-to-pe2

mpls.0: 6 destinations, 6 routes (6 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0                  *[MPLS/0] 01:29:01, metric 1
                    Receive
1                  *[MPLS/0] 01:29:01, metric 1
                    Receive
2                  *[MPLS/0] 01:29:01, metric 1
                    Receive
13                 *[MPLS/0] 01:29:01, metric 1
                    Receive
262145             *[VPLS/7] 00:13:53
                    > via lsi.17826048 (master), Pop
lsi.17826048       *[VPLS/7] 00:13:53, metric2 1
                    > to 10.20.0.1 via ge-0/0/0.200, label-switched-path pe1-to-pe2

bgp.l2vpn.0: 1 destinations, 1 routes (1 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

65001:202001:1:1/96
                *[BGP/170] 00:13:53, localpref 100, from 3.3.3.3
                    AS path: I, validation-state: unverified
                    > to 10.20.0.1 via ge-0/0/0.200, label-switched-path pe1-to-pe2

vpls2001.l2vpn.0: 2 destinations, 2 routes (2 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

65001:202001:1:1/96
                *[BGP/170] 00:13:53, localpref 100, from 3.3.3.3
                    AS path: I, validation-state: unverified
                    > to 10.20.0.1 via ge-0/0/0.200, label-switched-path pe1-to-pe2
65001:202001:2:1/96
                *[L2VPN/170/-101] 01:29:00, metric2 1
                    Indirect

root> show vpls connections logical-system VPLS | no-more
Layer-2 VPN connections:

Legend for connection status (St)
EI -- encapsulation invalid      NC -- interface encapsulation not CCC/TCC/VPLS
EM -- encapsulation mismatch     WE -- interface and instance encaps not same
VC-Dn -- Virtual circuit down    NP -- interface hardware not present
CM -- control-word mismatch      -> -- only outbound connection is up
CN -- circuit not provisioned    <- -- only inbound connection is up
OR -- out of range               Up -- operational
OL -- no outgoing label          Dn -- down
LD -- local site signaled down   CF -- call admission control failure
RD -- remote site signaled down  SC -- local and remote site ID collision
LN -- local site not designated  LM -- local site ID not minimum designated
RN -- remote site not designated RM -- remote site ID not minimum designated
XX -- unknown connection status  IL -- no incoming label
MM -- MTU mismatch               MI -- Mesh-Group ID not available
BK -- Backup connection          ST -- Standby connection
PF -- Profile parse failure      PB -- Profile busy
RS -- remote site standby        SN -- Static Neighbor
LB -- Local site not best-site   RB -- Remote site not best-site
VM -- VLAN ID mismatch           HS -- Hot-standby Connection

Legend for interface status
Up -- operational
Dn -- down

Instance: vpls2001
Edge protection: Not-Primary
Local site: vpls-site (2)
    connection-site           Type  St     Time last up          # Up trans
    1                         rmt   Up     Sep 18 22:25:43 2016           1
    Remote PE: 1.1.1.1, Negotiated control-word: No
    Incoming label: 262145, Outgoing label: 262146
    Local interface: lsi.17826048, Status: Up, Encapsulation: VPLS
        Description: Intf - vpls vpls2001 local site 2 remote site 1
    Flow Label Transmit: No, Flow Label Receive: No

root> show vpls mac-table logical-system VPLS | no-more

MAC flags       (S -static MAC, D -dynamic MAC, L -locally learned, C -Control MAC
    O -OVSDB MAC, SE -Statistics enabled, NM -Non configured MAC, R -Remote PE MAC)

Logical system   : VPLS
Routing instance : vpls2001
Bridging domain : __vpls2001__, VLAN : NA
MAC                 MAC      Logical          NH     RTR
addresssss          flags    interface        Index  ID
00:65:58:45:7a:01   D        lsi.17826048
00:65:58:7f:16:01   D        ge-0/0/4.2001

root> show mpls lsp logical-system VPLS | no-more
Ingress LSP: 1 sessions
To              From            State Rt P     ActivePath       LSPname
1.1.1.1         2.2.2.2         Up     0 *                      pe1-to-pe2
Total 1 displayed, Up 1, Down 0

Egress LSP: 1 sessions
To              From            State   Rt Style Labelin Labelout LSPname
2.2.2.2         1.1.1.1         Up       0  1 FF       3        - pe1-to-pe2
Total 1 displayed, Up 1, Down 0

Transit LSP: 0 sessions
Total 0 displayed, Up 0, Down 0

root> show rsvp session logical-system VPLS
Ingress RSVP: 1 sessions
To              From            State   Rt Style Labelin Labelout LSPname
1.1.1.1         2.2.2.2         Up       0  1 FF       -        3 pe1-to-pe2
Total 1 displayed, Up 1, Down 0

Egress RSVP: 1 sessions
To              From            State   Rt Style Labelin Labelout LSPname
2.2.2.2         1.1.1.1         Up       0  1 FF       3        - pe1-to-pe2
Total 1 displayed, Up 1, Down 0

Transit RSVP: 0 sessions
Total 0 displayed, Up 0, Down 0

vMX#3

root> show interfaces terse | no-more
Interface               Admin Link Proto    Local                 Remote
ge-0/0/0                up    up
ge-0/0/0.200            up    up   inet     10.20.1.3/24
                                multiservice
ge-0/0/0.32767          up    up   multiservice
lc-0/0/0                up    up
lc-0/0/0.32769          up    up   vpls
pfe-0/0/0               up    up
pfe-0/0/0.16383         up    up   inet
                                inet6
pfh-0/0/0               up    up
pfh-0/0/0.16383         up    up   inet
pfh-0/0/0.16384         up    up   inet
ge-0/0/1                up    up
ge-0/0/1.200            up    up   inet     10.20.2.3/24
                                multiservice
ge-0/0/1.32767          up    up   multiservice
ge-0/0/2                up    up
ge-0/0/3                up    up
ge-0/0/4                up    up
ge-0/0/5                up    up
ge-0/0/6                up    down
ge-0/0/7                up    down
ge-0/0/8                up    down
ge-0/0/9                up    down
cbp0                    up    up
demux0                  up    up
dsc                     up    up
em1                     up    up
em1.0                   up    up   inet     10.0.0.4/8
                                            128.0.0.1/2
                                            128.0.0.4/2
                                inet6    fe80::265:58ff:feaa:ad01/64
                                            fec0::a:0:0:4/64
                                tnp      0x4
esi                     up    up
fxp0                    up    up
fxp0.0                  up    up   inet     172.16.0.3/24
gre                     up    up
ipip                    up    up
irb                     up    up
jsrv                    up    up
jsrv.1                  up    up   inet     128.0.0.127/2
lo0                     up    up
lo0.200                 up    up   inet     3.3.3.3             --> 0/0
lo0.16384               up    up   inet     127.0.0.1           --> 0/0
lo0.16385               up    up   inet
lsi                     up    up
mtun                    up    up
pimd                    up    up
pime                    up    up
pip0                    up    up
pp0                     up    up
rbeb                    up    up
tap                     up    up
vtep                    up    up
vtnet2                  up    up
vtnet3                  up    up

root> show ospf neighbor logical-system VPLS | no-more
Address          Interface              State     ID               Pri  Dead
10.20.1.1        ge-0/0/0.200           Full      1.1.1.1          128    34
10.20.2.2        ge-0/0/1.200           Full      2.2.2.2          128    32

root> show bgp summary logical-system VPLS | no-more
Groups: 1 Peers: 2 Down peers: 0
Table          Tot Paths  Act Paths Suppressed    History Damp State    Pending
bgp.l2vpn.0
                    2          2          0          0          0          0
Peer                     AS      InPkt     OutPkt    OutQ   Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
1.1.1.1               65001        200        201       0       0     1:28:56 Establ
bgp.l2vpn.0: 1/1/1/0
2.2.2.2               65001        201        202       0       0     1:29:05 Establ
bgp.l2vpn.0: 1/1/1/0

root> show route logical-system VPLS | no-more

inet.0: 9 destinations, 9 routes (9 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

1.1.1.1/32         *[OSPF/10] 01:29:17, metric 1
                    > to 10.20.1.1 via ge-0/0/0.200
2.2.2.2/32         *[OSPF/10] 01:29:22, metric 1
                    > to 10.20.2.2 via ge-0/0/1.200
3.3.3.3/32         *[Direct/0] 01:29:37
                    > via lo0.200
10.20.0.0/24       *[OSPF/10] 01:29:17, metric 2
                    to 10.20.1.1 via ge-0/0/0.200
                    > to 10.20.2.2 via ge-0/0/1.200
10.20.1.0/24       *[Direct/0] 01:29:37
                    > via ge-0/0/0.200
10.20.1.3/32       *[Local/0] 01:29:37
                    Local via ge-0/0/0.200
10.20.2.0/24       *[Direct/0] 01:29:37
                    > via ge-0/0/1.200
10.20.2.3/32       *[Local/0] 01:29:37
                    Local via ge-0/0/1.200
224.0.0.5/32       *[OSPF/10] 01:29:37, metric 1
                    MultiRecv

bgp.l2vpn.0: 2 destinations, 2 routes (2 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

65001:202001:1:1/96
                *[BGP/170] 00:15:10, localpref 100, from 1.1.1.1
                    AS path: I, validation-state: unverified
                    > to 10.20.1.1 via ge-0/0/0.200
65001:202001:2:1/96
                *[BGP/170] 00:15:10, localpref 100, from 2.2.2.2
                    AS path: I, validation-state: unverified
                    > to 10.20.2.2 via ge-0/0/1.200

root> show vpls connections logical-system VPLS | no-more

root> show vpls mac-table logical-system VPLS | no-more

root> show mpls lsp logical-system VPLS | no-more
MPLS not configured

root> show rsvp session logical-system VPLS
RSVP not configured

root> show route logical-system VPLS table bgp.l2vpn.0 extensive | no-more

bgp.l2vpn.0: 2 destinations, 2 routes (2 active, 0 holddown, 0 hidden)
65001:202001:1:1/96 (1 entry, 1 announced)
TSI:
Page 0 idx 0, (group rr type Internal) Type 1 val 0xcf22624 (adv_entry)
Advertised metrics:
    Nexthop: 1.1.1.1
    Localpref: 100
    AS path: [65001] I
    Communities: target:65001:202001 Layer2-info: encaps: VPLS, control flags:[0x0] , mtu: 0, site preference: 100
    Cluster ID: 3.3.3.3
    Originator ID: 1.1.1.1
    Advertise: 00000002
Path 65001:202001:1:1 from 1.1.1.1 Vector len 4.  Val: 0
        *BGP    Preference: 170/-101
                Route Distinguisher: 65001:202001
                Next hop type: Indirect, Next hop index: 0
                Address: 0xcf01050
                Next-hop reference count: 1
                Source: 1.1.1.1
                Protocol next hop: 1.1.1.1
                Indirect next hop: 0x2 no-forward INH Session ID: 0x0
                State: <Active Int Ext>
                Local AS: 65001 Peer AS: 65001
                Age: 17:26      Metric2: 1
                Validation State: unverified
                Task: BGP_65001.1.1.1.1
                Announcement bits (1): 0-BGP_RT_Background
                AS path: I
                Communities: target:65001:202001 Layer2-info: encaps: VPLS, control flags:[0x0] , mtu: 0, site preference: 100
                Accepted
                Label-base: 262145, range: 8, offset: 1
                Localpref: 100
                Router ID: 1.1.1.1
                Indirect next hops: 1
                        Protocol next hop: 1.1.1.1 Metric: 1
                        Indirect next hop: 0x2 no-forward INH Session ID: 0x0
                        Indirect path forwarding next hops: 1
                                Next hop type: Router
                                Next hop: 10.20.1.1 via ge-0/0/0.200
                                Session Id: 0x143
                        1.1.1.1/32 Originating RIB: inet.0
                        Metric: 1                       Node path count: 1
                        Forwarding nexthops: 1
                                Nexthop: 10.20.1.1 via ge-0/0/0.200

65001:202001:2:1/96 (1 entry, 1 announced)
TSI:
Page 0 idx 0, (group rr type Internal) Type 1 val 0xcf22544 (adv_entry)
Advertised metrics:
    Nexthop: 2.2.2.2
    Localpref: 100
    AS path: [65001] I
    Communities: target:65001:202001 Layer2-info: encaps: VPLS, control flags:[0x0] , mtu: 0, site preference: 100
    Cluster ID: 3.3.3.3
    Originator ID: 2.2.2.2
    Advertise: 00000001
Path 65001:202001:2:1 from 2.2.2.2 Vector len 4.  Val: 0
        *BGP    Preference: 170/-101
                Route Distinguisher: 65001:202001
                Next hop type: Indirect, Next hop index: 0
                Address: 0xcf01290
                Next-hop reference count: 1
                Source: 2.2.2.2
                Protocol next hop: 2.2.2.2
                Indirect next hop: 0x2 no-forward INH Session ID: 0x0
                State: <Active Int Ext>
                Local AS: 65001 Peer AS: 65001
                Age: 17:26      Metric2: 1
                Validation State: unverified
                Task: BGP_65001.2.2.2.2
                Announcement bits (1): 0-BGP_RT_Background
                AS path: I
                Communities: target:65001:202001 Layer2-info: encaps: VPLS, control flags:[0x0] , mtu: 0, site preference: 100
                Accepted
                Label-base: 262145, range: 8, offset: 1
                Localpref: 100
                Router ID: 2.2.2.2
                Indirect next hops: 1
                        Protocol next hop: 2.2.2.2 Metric: 1
                        Indirect next hop: 0x2 no-forward INH Session ID: 0x0
                        Indirect path forwarding next hops: 1
                                Next hop type: Router
                                Next hop: 10.20.2.2 via ge-0/0/1.200
                                Session Id: 0x142
                        2.2.2.2/32 Originating RIB: inet.0
                        Metric: 1                       Node path count: 1
                        Forwarding nexthops: 1
                                Nexthop: 10.20.2.2 via ge-0/0/1.200
